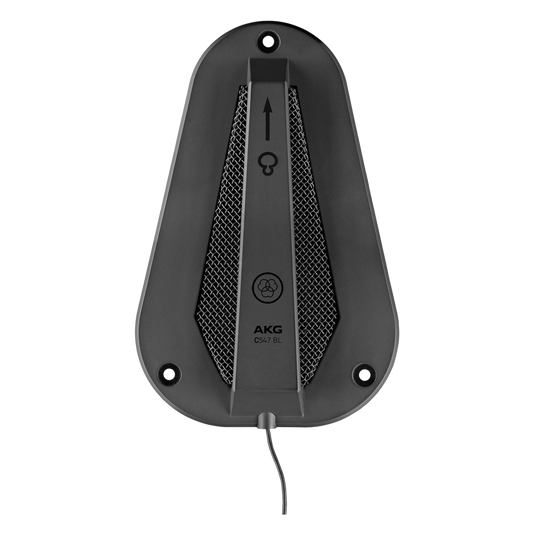

C547 BL

Live on stage

The C547 is a hypercardioid professional boundary layer microphone. The rugged, non-crush case and a switchable bass-cut filter make the C547 an ideal choice for tough on-stage assignments. Using PCC® (Phase Coherent Cardioid®) technology with hypercardioid polar pattern, the microphone provides high directivity and neutral sound. The C547 is built on the same acoustical components as the legendary C747 V11. Primarily designed for use in houses of worship, theaters and conferencing, the C547 BL is also a good choice for miking kick drums and other instruments. The highly efficient RFi-Shield technology substantially reduces interference noise due to electromagnetic pollution.

Especificações Gerais

Audio frequency bandwidth

30 - 18000 Hz

Equivalent noise level

22 dB-A

Sensitivity

8.5 mV/Pa

Signal to Noise

72 dB-A

Bass cut filter

150 Hz

Recommended load impedance

1000 Ohms

Polar Pattern

Hypercardioid

Dimensões

Length

120 mm

Width

185 mm

Height

19 mm

Net Weight

160 g

Design

Finish

matte dark gray

Audio Output

Type

Balanced XLR

Gender

Male

Contacts

6-pin

Powering Interface

Voltage

9 to 52 V

Current

2 mA

Device

Boundary Layer Microphone

1 x C547 BL Microphone

1 x W547 Windscreen
